I’ve spent the better part of the last decade squeezing recovery gear into places it was never meant to go. Whether it’s a modern mid-size truck with a high-clearance "lo-pro" bumper or a custom crawler where every inch of rail space is a premium, the struggle is always the same: we want the legendary pulling power of a heavy-duty winch, but we don't have the real estate for a bulky housing. For years, the Warn ZEON series has been the gold standard for reliability, but its iconic "armored" look sometimes made for a tight squeeze in recessed mounts.
That’s exactly why the launch of the Warn ZEON XC is such a massive deal for the off-road community. Warn has essentially taken the "meat and potatoes" of their most successful winch line and trimmed the fat. The Warn ZEON XC differs from the ZEON XD by featuring a lower-profile control box and removed end armor, making it smaller and lighter while using the same internal components that have made the ZEON name legendary. It’s a leaner, meaner recovery tool designed for the way we build rigs today.
Warn ZEON XC vs. ZEON XD: What’s the Difference?

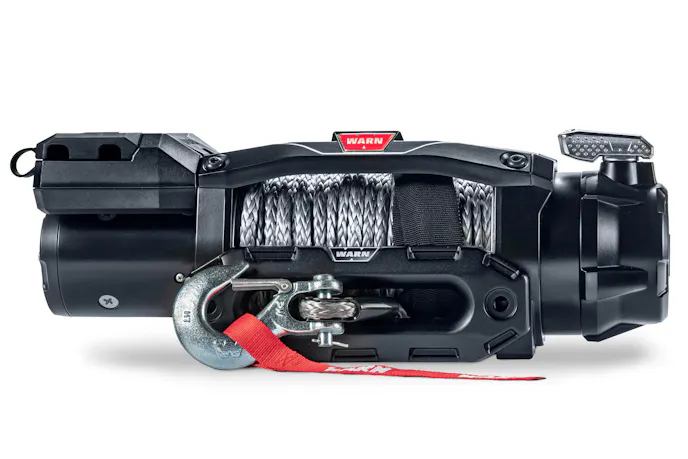

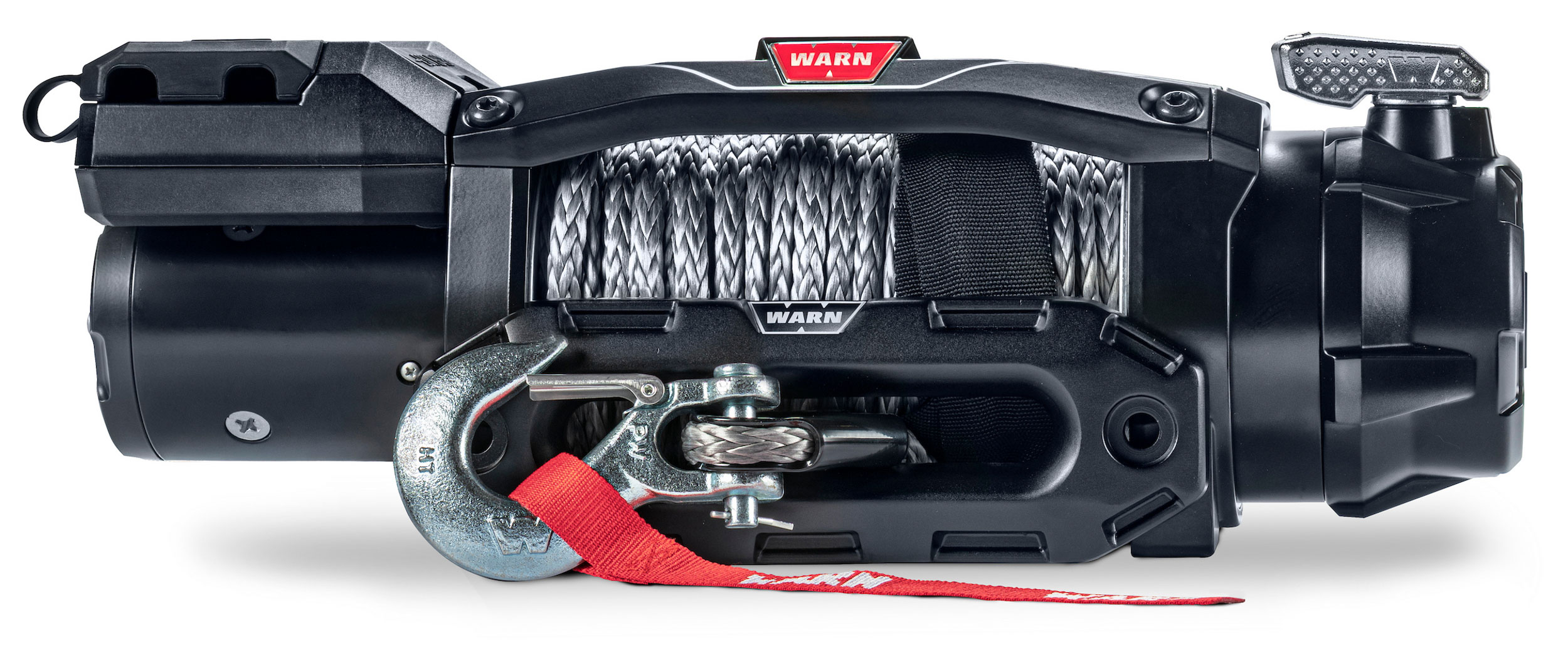

When you first lay eyes on the ZEON XC, the silhouette is the first thing you notice. If the ZEON XD is a linebacker in full pads, the XC is a triathlete in a compression suit. By stripping away the decorative end armor and redesigning the control pack housing to sit lower, Warn has significantly reduced the winch's footprint. This isn't just about aesthetics; it’s about clearance.
In my experience, the biggest headache with hidden winch mounts isn't the drum—it's the control box hitting the grille or the frame horns. The XC's low-profile housing solves this. But here is the kicker: smaller doesn’t mean weaker.
Underneath that streamlined exterior, the ZEON XC shares the exact same high-performance motor and three-stage planetary gear train found in the XD and XP lines. You’re getting the same "guts"—the same torque and the same reliability—just in a package that’s easier to mount. Furthermore, by removing the extra armor, Warn has managed to shed some front-end weight. On a modern IFS (Independent Front Suspension) rig, every pound you can save in front of the axle helps maintain your ride height and prevents suspension sag.
Technical Performance & Engineering Excellence
If you’re looking for a budget winch to look cool at the mall, this isn't it. The ZEON XC is built for people who actually get stuck in places where a cell signal is a distant memory. The Warn ZEON XC series is available in three pulling capacities: 10,000 lbs, 12,000 lbs, and 14,000 lbs, with options for steel or synthetic rope.
The performance specs are, frankly, best-in-class. Here’s why the engineering matters to you on the trail:
- Speed Under Load: We’ve all been there—standing in the rain waiting for a slow winch to take up slack. The ZEON XC features a lightning-fast line speed that can reach up to 40 feet per minute. When you’re trying to keep momentum during a recovery, that speed is a lifesaver.
- Thermal Management: The large-diameter aluminum winch drum isn't just for show; it dissipates heat better than steel, which is crucial if you’re running synthetic rope. Heat is the enemy of synthetic fibers, and Warn’s design keeps the rope cool even during long pulls.
- The Albright Contactor: This is the "brain" of the winch. Instead of cheap solenoids that can stick or burn out, Warn uses an Albright contactor. It’s the most reliable electrical switch in the industry, capable of handling the massive amperage required for a 14,000-lb pull without breaking a sweat.
- Extreme Durability: The XC carries a dual IP68 and IP69K waterproof rating. This means it can handle being fully submerged in a river crossing and can withstand high-pressure, high-temperature power washing back at the shop.
Warn didn't stop at waterproofing. They’ve engineered an OEM-grade black powder-coated finish that has survived a grueling 408-hour salt spray test. If you live in the Rust Belt or wheel on the coast, you know that salt is a winch killer. The XC is built to resist corrosion better than almost anything else on the market.
Maximum Mounting Flexibility for Custom Rigs
One of the most impressive features of the ZEON XC—and the reason it’s going to be a favorite for custom builders—is its adaptability. Most winches are "take it or leave it" when it comes to orientation. The XC, however, is designed to be manipulated to fit your specific space.
You can rotate the motor up to 90 degrees and "clock" the transmission into five different positions. Why does this matter? Because sometimes the clutch lever on a standard winch is blocked by a bumper hoop or a grille guard. With the XC, you can move the lever to where you can actually reach it.
Even better, the control pack is relocatable. If you have an ultra-tight bumper where the control box simply won't fit on top of the winch, you can move the remote socket up to 9 inches away using the integrated bus bars. This allows for a truly "hidden" look while keeping the plug-in point accessible. Whether you’re running a foot-forward mount (common on Jeeps) or a foot-down mount (common on truck bumpers), the XC accommodates both scenarios with ease.
Choosing Your Configuration: The 8-Model Lineup
Warn is offering the ZEON XC in eight different configurations to ensure there’s a perfect match for every rig, from a lightweight Overland Jeep to a heavy-duty 3/4-ton truck.
For most "standard" builds, I generally recommend the 12,000-lb capacity. The old rule of thumb is to have a winch rated for 1.5 times your vehicle’s Gross Vehicle Weight Rating (GVWR). A 12k winch provides that extra "insurance" when you’re buried up to the axles in thick mud. If you're running a heavy Cummins or Powerstroke rig, step up to the 14k.
| Model | Pulling Capacity | Rope Type | MSRP |
|---|---|---|---|
| ZEON XC 10 | 10,000 lbs | 80' Steel | $1,500 |
| ZEON XC 10-S | 10,000 lbs | 100' Spydura Synthetic | $1,650 |
| ZEON XC 10 Bare | 10,000 lbs | Bare Drum (No Rope) | $1,450 |
| ZEON XC 12 | 12,000 lbs | 80' Steel | $1,600 |
| ZEON XC 12-S | 12,000 lbs | 80' Spydura Synthetic | $1,750 |
| ZEON XC 12 Bare | 12,000 lbs | Bare Drum (No Rope) | $1,550 |
| ZEON XC 14 | 14,000 lbs | 80' Steel | $1,700 |
| ZEON XC 14-S | 14,000 lbs | 80' Spydura Synthetic | $1,800 |
(Note: Pricing is MSRP; actual street prices may vary by retailer.)
For those who already have a favorite rope or want to run a specific color of synthetic line, the "Bare Drum" models are a fantastic option. You get the premium winch without paying for a cable you intend to replace anyway.
Built for the Long Haul: Warranty & Support
A winch is a safety device. When you’re hanging off a ledge or stuck in a remote canyon, you need to know the manufacturer stands behind the product. This is where Warn separates itself from the "budget" brands that flood the internet.
The Warn ZEON XC is backed by a limited lifetime warranty on mechanical components and a 7-year warranty on electrical parts, all assembled in the USA at their facility in Clackamas, Oregon.
In my years of traveling, I’ve also realized that Warn's global service network is an underrated benefit. If you’re overlanding through Central America or the Australian Outback and a part fails, there is a much higher chance of finding a Warn service center or replacement part than there is for a "generic" brand. That peace of mind is worth the premium price tag alone.
Practical Recovery Tips: Winch Maintenance & Safety
Even the best winch in the world will fail if you don't take care of it. Here’s how I keep my recovery gear trail-ready:
- Inspect Your Rope Monthly: If you run synthetic, look for "fuzzy" spots (abrasion) or UV fading. If you run steel, look for kinks or broken strands ("fishhooks"). If it's damaged, replace it immediately. Your life literally depends on that line.
- Clean After the Mud: If you bury your winch in a mud hole, don't just let it dry. When you get home, pull out the entire line, wash the mud off the rope and the drum with fresh water, and let it dry before re-spooling. Grit inside the winch drum acts like sandpaper on your rope.
- The "Dampener" Rule: Even with synthetic rope (which doesn't store as much kinetic energy as steel), I always use a winch dampener or even a heavy floor mat over the line. It’s a simple safety measure that can prevent a catastrophic accident if a mounting point or shackle fails.
- Check Your Connections: Off-roading involves constant vibration. Every few months, take a wrench to the battery terminals and the connections on the winch itself. A loose ground is the most common reason for a "failed" winch.
FAQ
Q: Can I upgrade my existing ZEON to an XC model? A: Not directly. While they share internal components, the housing and control pack mounting are different. However, if you have a ZEON XD and are struggling with clearance, you might be able to relocate your control pack to achieve a similar low-profile fit.
Q: Is the Spydura synthetic rope worth the extra $150? A: In my opinion, yes. It's safer because it doesn't store energy like steel, it’s much lighter, and it doesn't develop sharp burrs that cut your hands. For 90% of off-roaders, synthetic is the better choice.
Q: Will the ZEON XC fit in a factory "Winch Ready" bumper? A: Yes. Because it has a smaller footprint than the standard ZEON, it is actually more likely to fit in those tight factory-optional winch bumpers (like those on the Ford Super Duty or Jeep Wrangler Rubicon) without modification.
Ready to Gear Up?
The Warn ZEON XC isn't just another product launch; it’s a response to how the off-road industry has evolved. We’re building tighter, more integrated rigs that require smarter packaging. By delivering the legendary ZEON power in a more compact, USA-made frame, Warn has once again set the bar for what a premium recovery winch should be.
If you’re building a rig where every inch of clearance matters, the XC is the winch you’ve been waiting for.
